Seismic Bracket Fittings & Cantilever Arms

    Seismic Bracket Fittings & Cantilever Arms

    Angle connectors (A/B/C/D), adjustable hinges, threaded rod ends, cantilever arms, channel bases and reinforcement plates for seismic bracing assemblies. Arms in 300/450/500 mm, hinges best at 45 degrees."
  • Share：
    • Contact us Inquiry
  • E-mail：wuping@westeeltech.com
    WhatsApp：13930620928

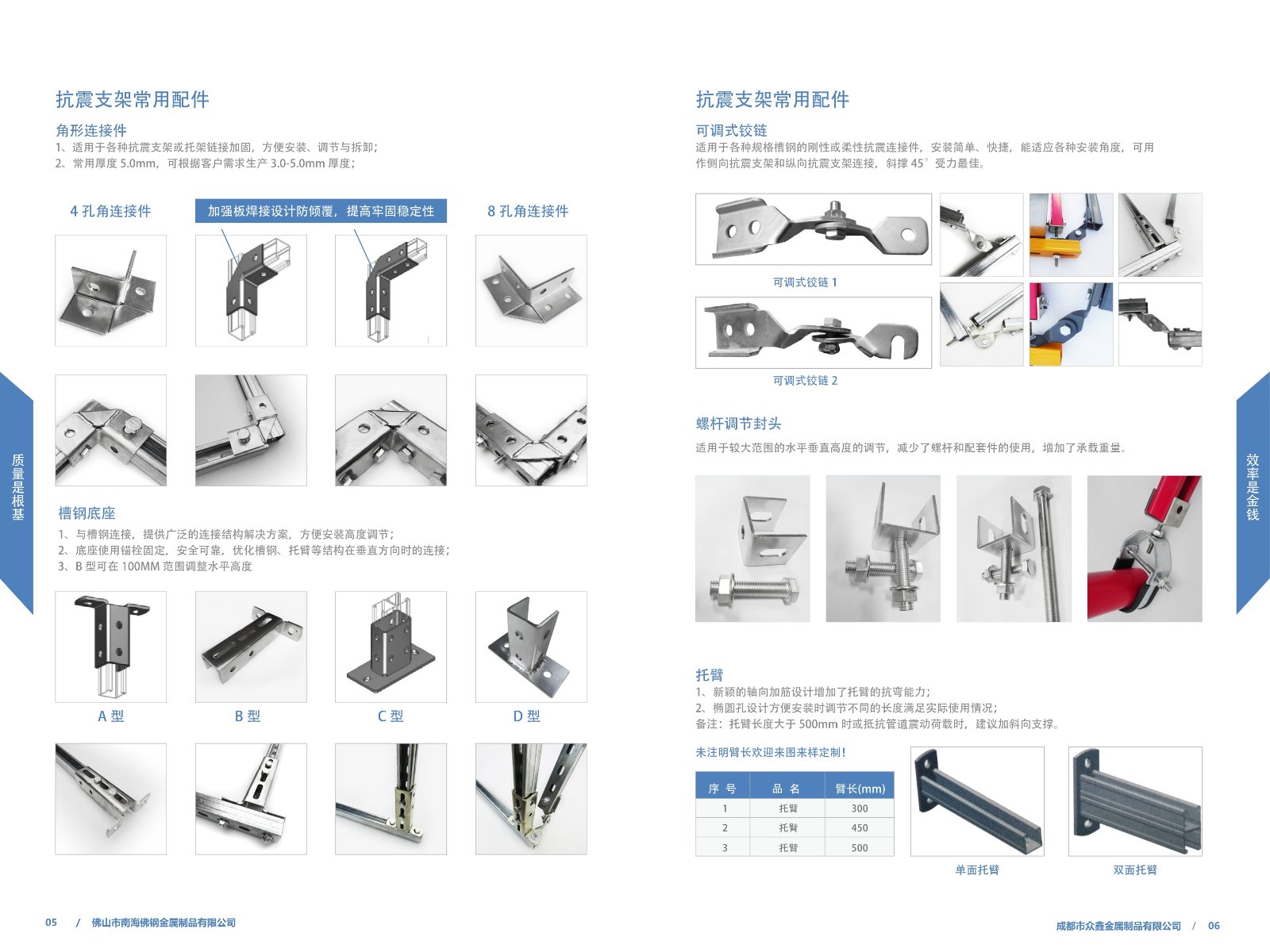

Complete fitting range for assembling seismic bracing frames on site:

  • Angle connectors (Type A/B/C/D) — for linking and reinforcing bracket frames; standard thickness 5.0 mm, custom 3.0-5.0 mm; Type B allows 100 mm horizontal height adjustment.
  • Adjustable hinge 1 / 2 — rigid or flexible connections for any channel size, simple and fast to install, suits any installation angle; use as lateral or longitudinal brace connection, 45 degrees is the optimum force angle.
  • Threaded rod adjustment end — connects to the channel, provides wide structural connection solutions and convenient height adjustment; base anchored with anchor bolts for safe vertical load transfer.
  • Cantilever arms (single / double sided) — axial rib design increases bending resistance; oval holes allow length adjustment on site. Recommended diagonal support when arm length exceeds 500 mm or to resist vibration loads.
  • 4-hole / 8-hole angle connectors, channel base, reinforcement plate — welding design prevents overturning and improves stability; base suits large-range height adjustment and increases load capacity while reducing rod usage.

Cantilever arm sizes

No.NameArm length (mm)
1Cantilever arm300
2Cantilever arm450
3Cantilever arm500

Unlisted arm lengths welcome — custom manufacturing to your drawing or sample.

Seismic Bracket Fittings & Cantilever Arms
