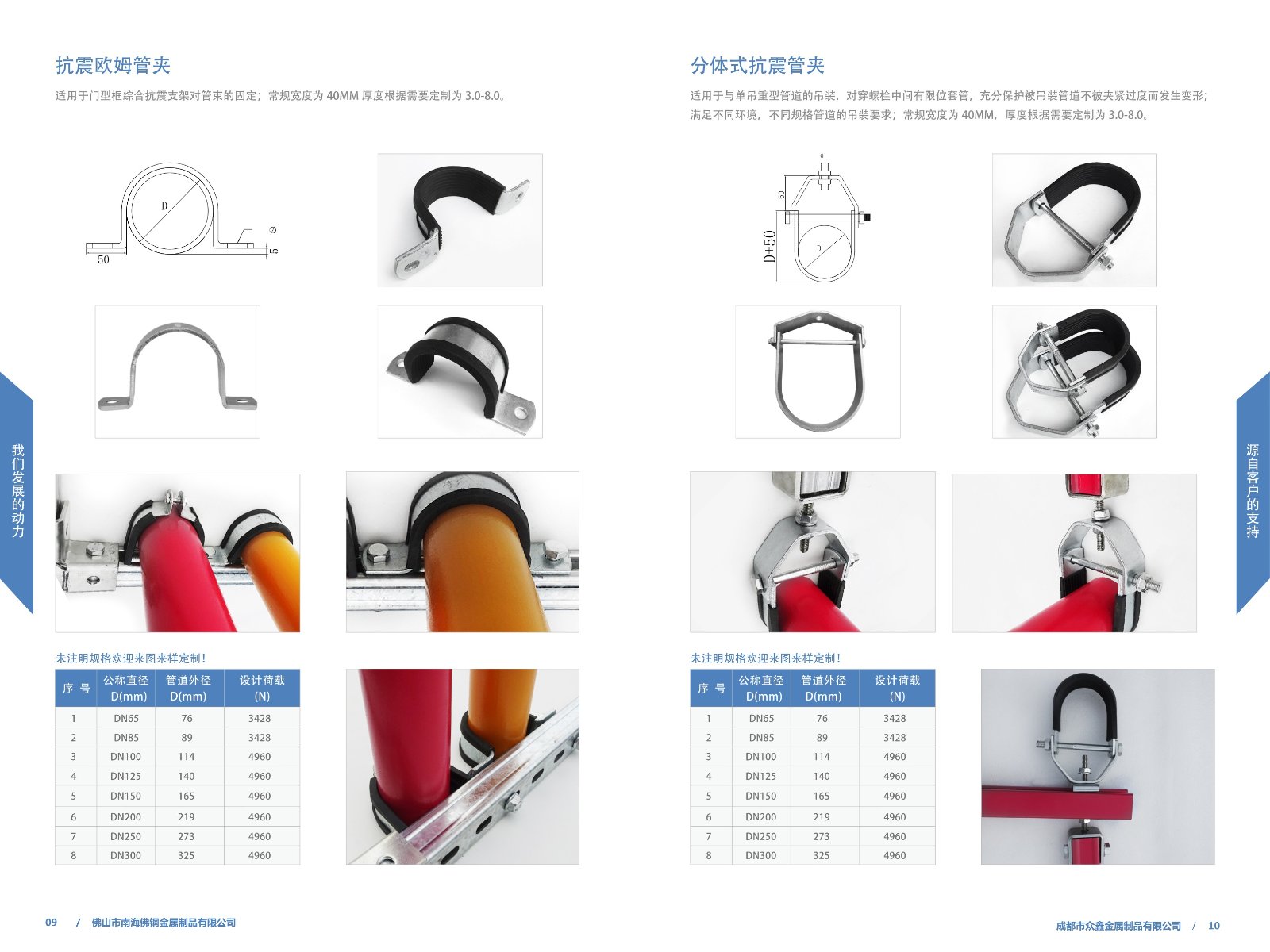

The omega clamp secures pipes to door-frame (portal) comprehensive seismic brace assemblies. Standard width 40 mm, thickness custom between 3.0-8.0 mm.
| No. | Nominal diameter | Pipe outer diameter D (mm) | Design load (N) |
|---|---|---|---|
| 1 | DN65 | 76 | 3428 |
| 2 | DN85 | 89 | 3428 |
| 3 | DN100 | 114 | 4960 |
| 4 | DN125 | 140 | 4960 |
| 5 | DN150 | 165 | 4960 |
| 6 | DN200 | 219 | 4960 |
| 7 | DN250 | 273 | 4960 |
| 8 | DN300 | 325 | 4960 |
Unlisted sizes welcome — custom manufacturing to your drawing or sample.
