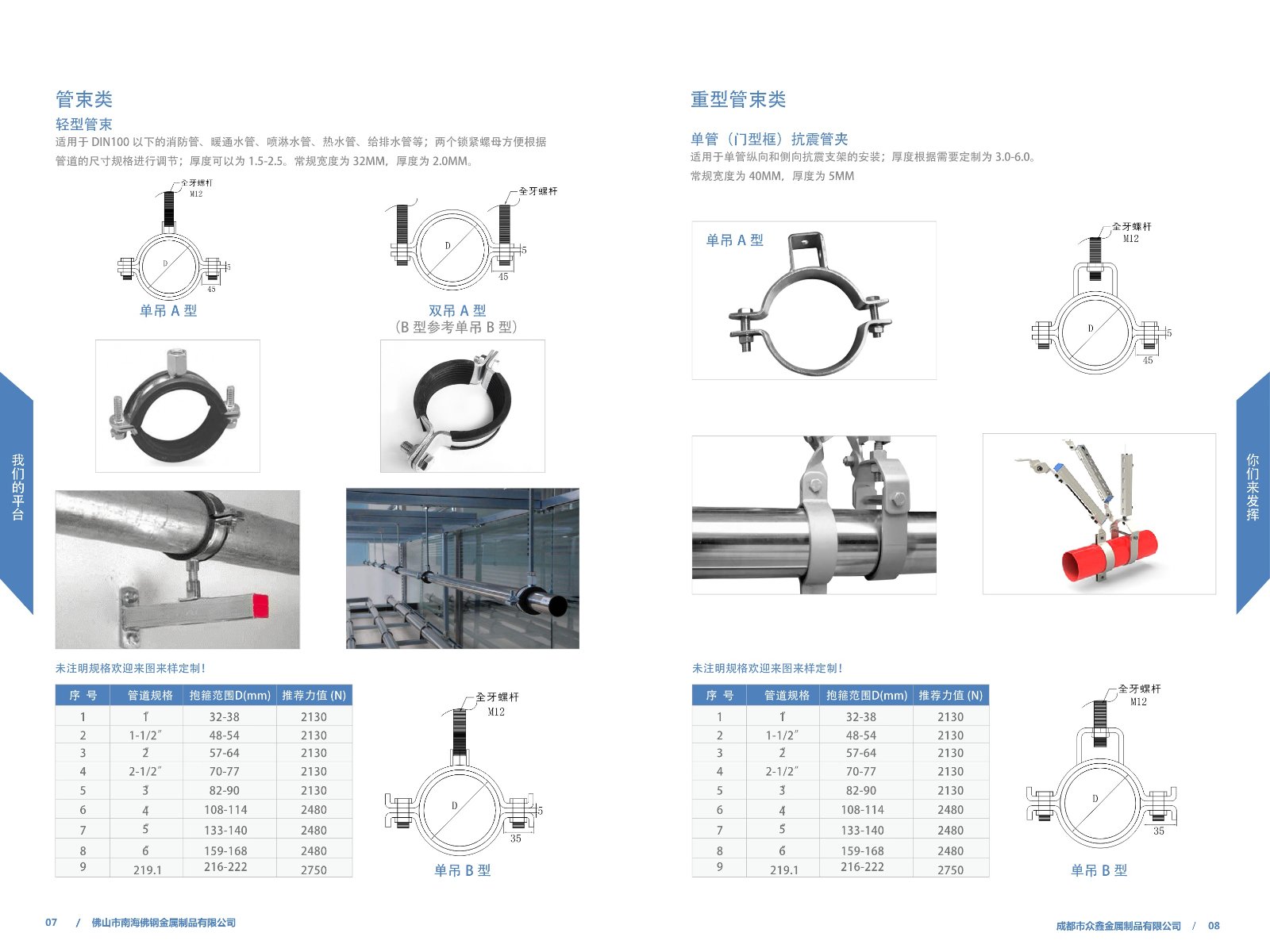

Light-duty pipe clamps are designed for pipes below DIN100 — fire protection, HVAC water, sprinkler, hot water and plumbing lines. Two lock nuts allow fast adjustment to the actual pipe size. Standard width 32 mm, thickness 2.0 mm (available 1.5-2.5 mm). Heavy-duty series are also available for larger pipes.
| No. | Clamp range D (mm) | Pipe size | Recommended load (N) |
|---|---|---|---|
| 1 | 32-38 | 1" | 2130 |
| 2 | 48-54 | 1-1/2" | 2130 |
| 3 | 57-64 | 2" | 2130 |
| 4 | 70-77 | 2-1/2" | 2130 |
| 5 | 82-90 | 3" | 2130 |
| 6 | 108-114 | 4" | 2480 |
| 7 | 133-140 | 5" | 2480 |
| 8 | 159-168 | 6" | 2480 |
| 9 | 216-222 | 219.1 | 2750 |
The values above are re-checked against the printed catalog table; contact us for load data of other sizes.
