All connection hardware for horizontal joints, tees and bends of wire mesh cable trays:

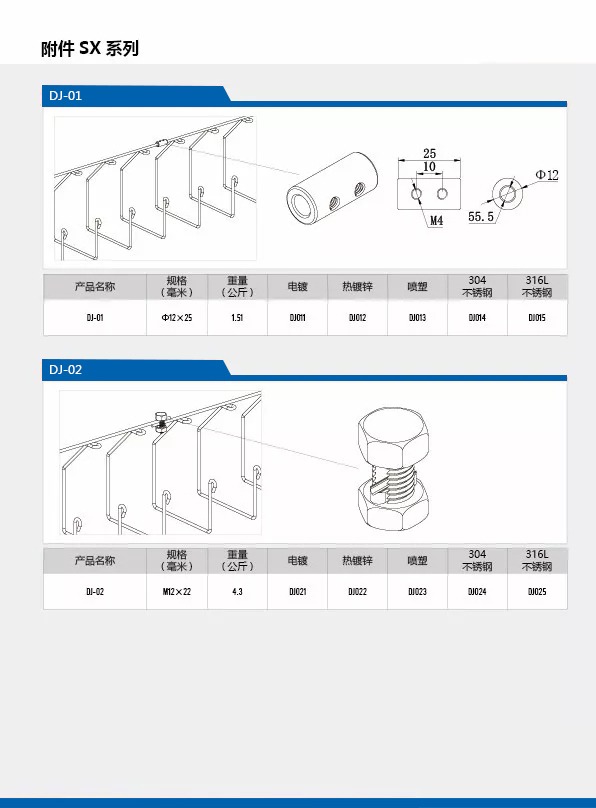

• Connector DJ-01 / DJ-02 — DJ-01: dia.12 x25 mm,1.51 kg; DJ-02: M12 x22 mm,4.3 kg.
• Buckle assembly (BFK011-015) — consists of1 outer buckle,1 inner buckle,1 M6 x20 carriage bolt and1 M6 flange nut; suitable for all mesh tray connections; sold separately. Scope:2 sets on each side; bottom set1-2 pcs depending on tray width.
• Reinforcing strip assembly / strip (BFM021-035) — strengthens long horizontal runs.

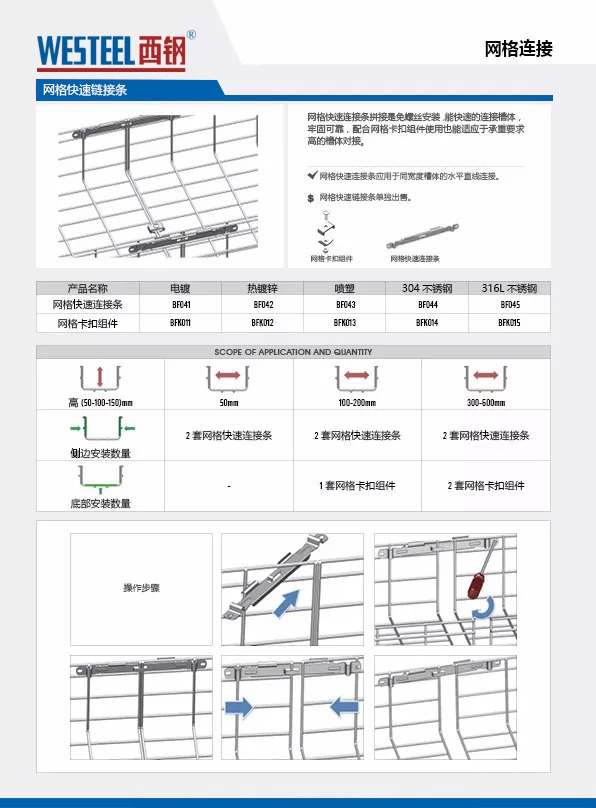

• Quick splice strip (BFK01-05) — simple splicing, anti-loosening screws, firm and reliable; works with buckle assemblies for high-load fence-style joints.
• L-shaped connector assembly (BFK051-055 / BFI051-055) — includes1 L-hardware,2 inner buckles,2 M6 x20 hex socket bolts,2 M6 hex flange nuts.
• Boltless buckle (BFU01-05) — boltless installation for T-shaped line connection.

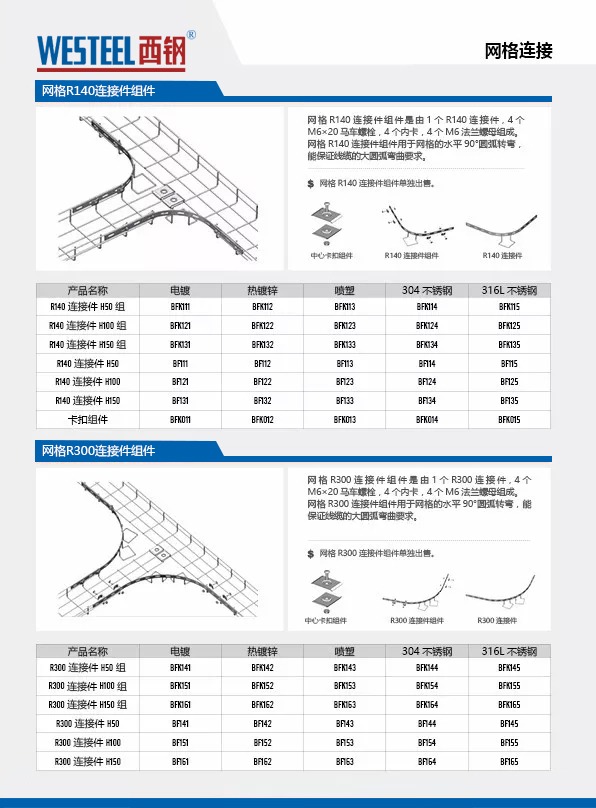

• R140 / R300 bend connectors — kit includes1 R140 (or R300) connection,4 M6 x20 flat washers,4 split pins,4 M6 hex flange nuts; used for horizontal90-degree bends with large curvature requirements.

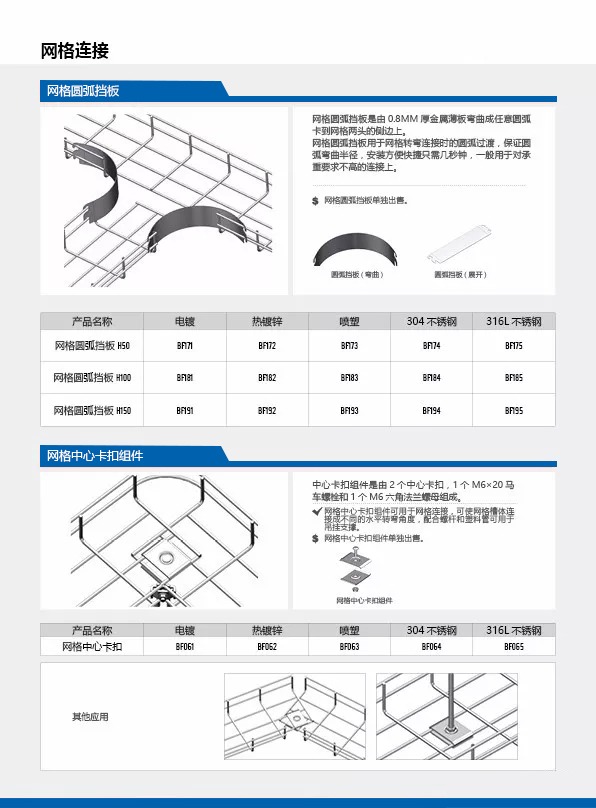

• Arc baffle R50 / R100 / R150 (BF71-95) —0.8 mm sheet bent to any arc, clips onto the tray end for smooth radius transitions (low-load connections).
• Centre clip (BF061-065 / BF051-055) —2 centre clips +1 M6 x20 carriage bolt +1 M6 hex flange nut; makes the tray watertight at horizontal bends.

All parts available in electro-galvanized, hot-dip galvanized, powder coated,304 and316L stainless.
